BMW E36

This BMW E36 came in for a plethora of upgrades, new items, refinement and general fab work. First up on the list is to build out a front bash bar.

Additional work includes:

Mount an E46 front bumper

Rear bash bar

Mounting up some LED light bars for headlights

Floating floor plates

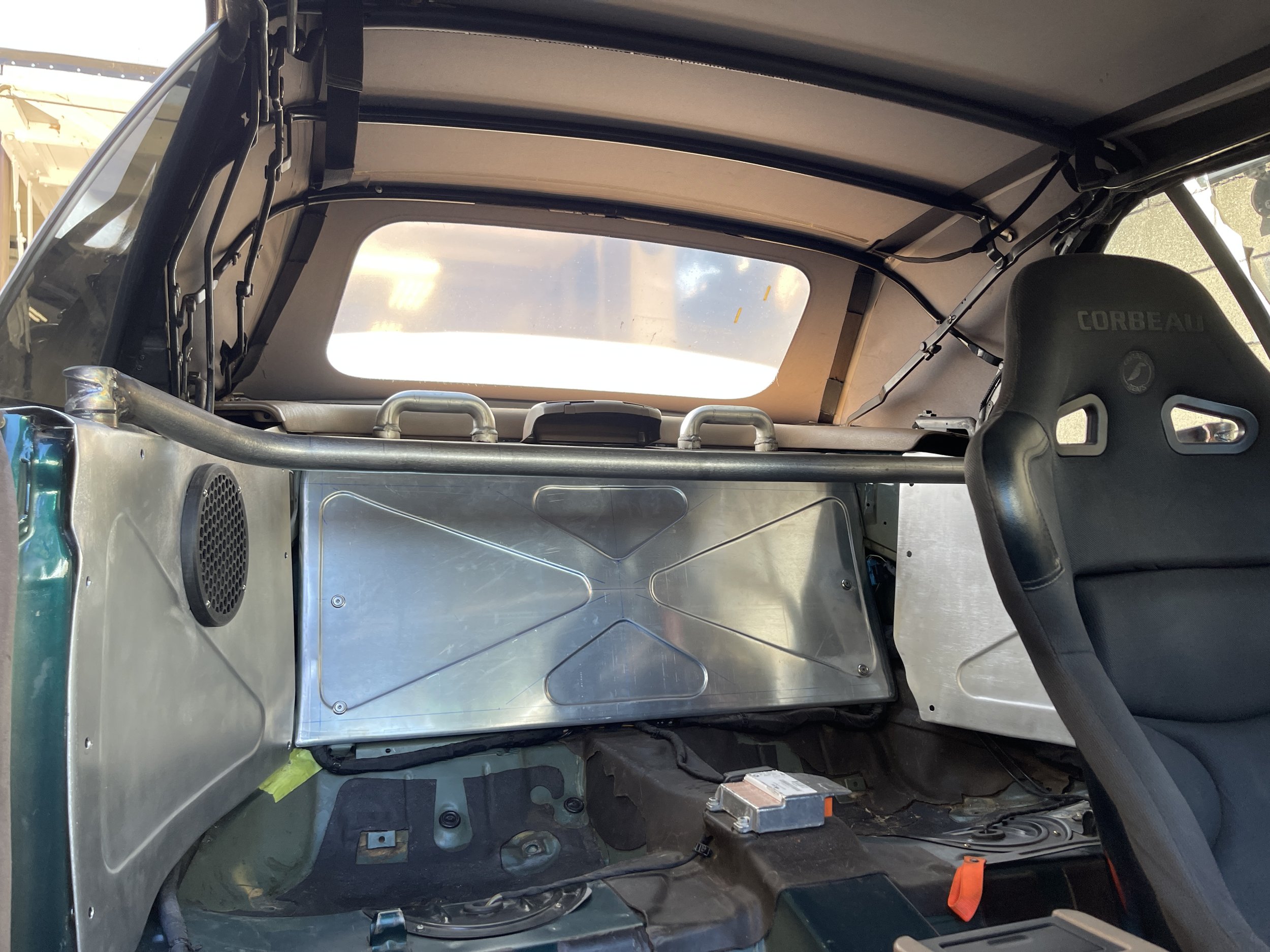

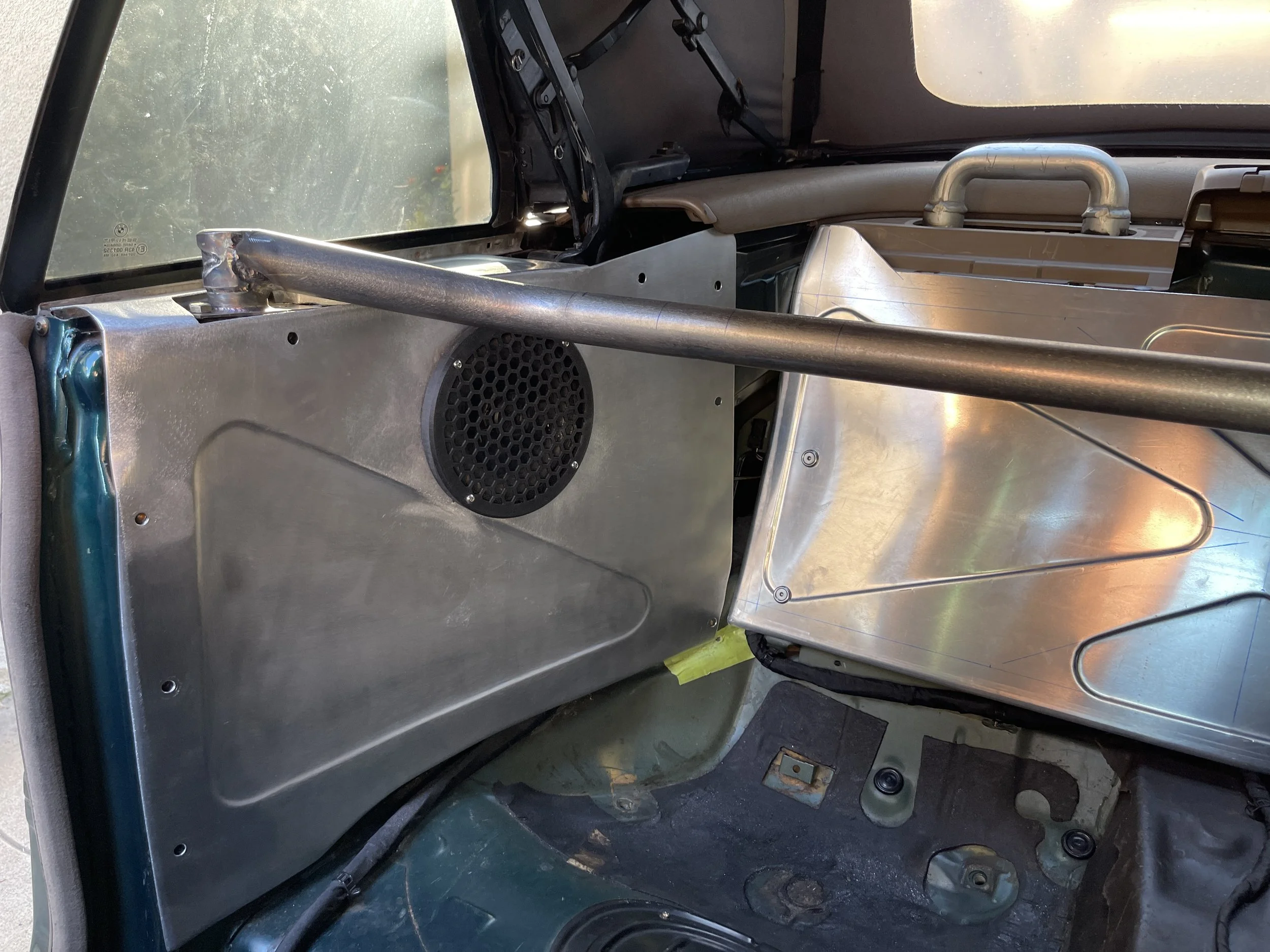

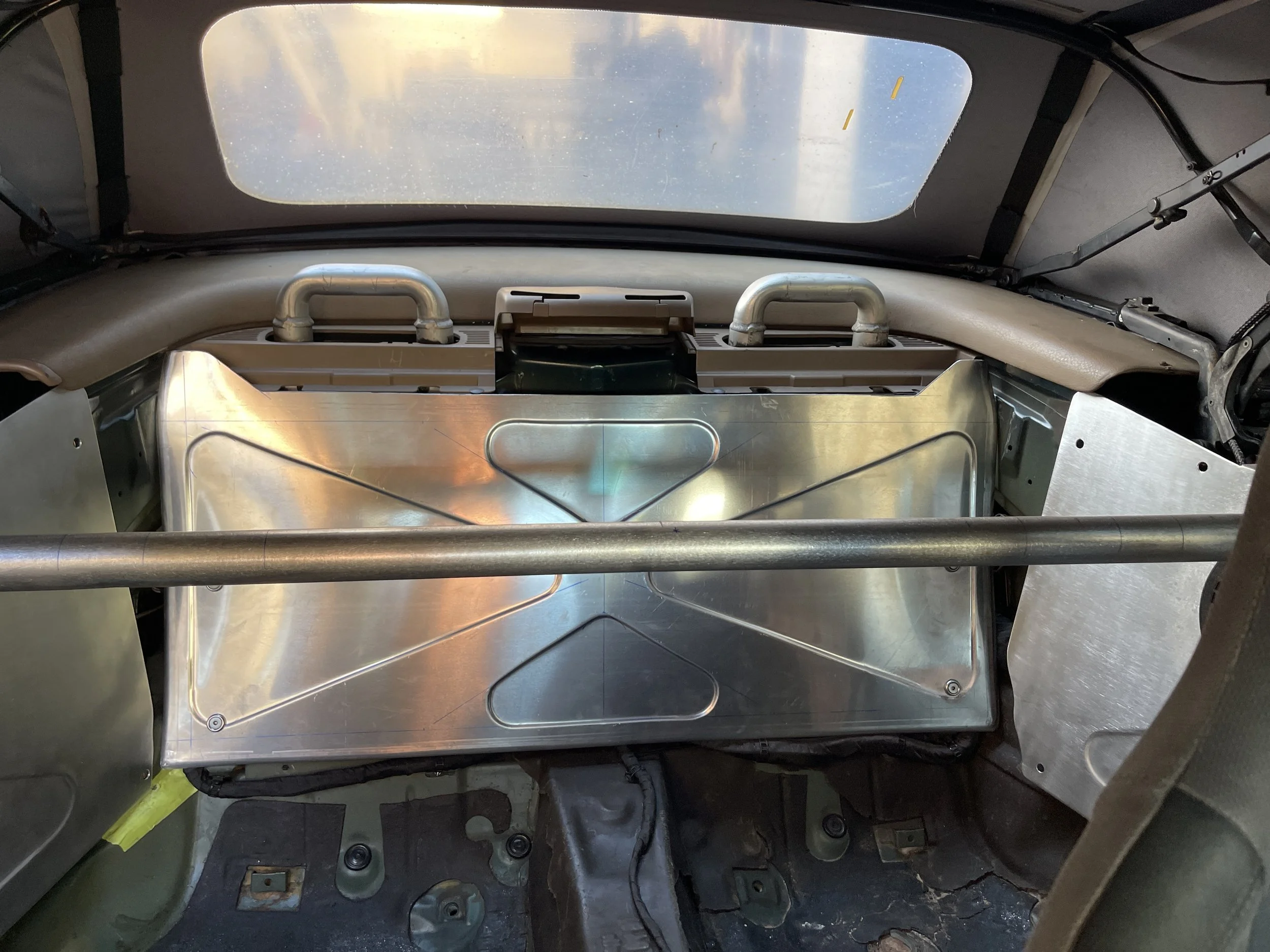

Interior tin work

Mount over-fenders

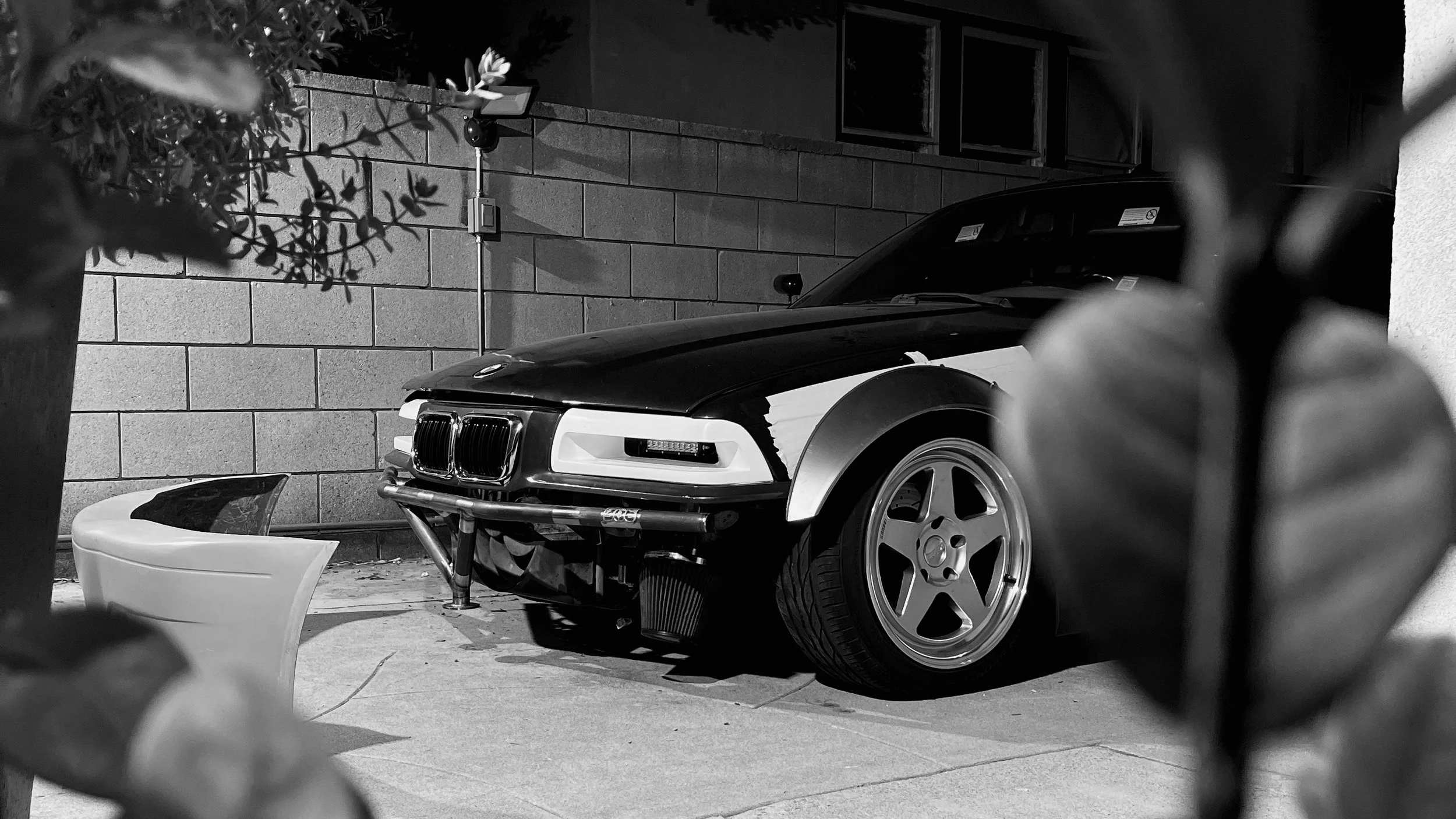

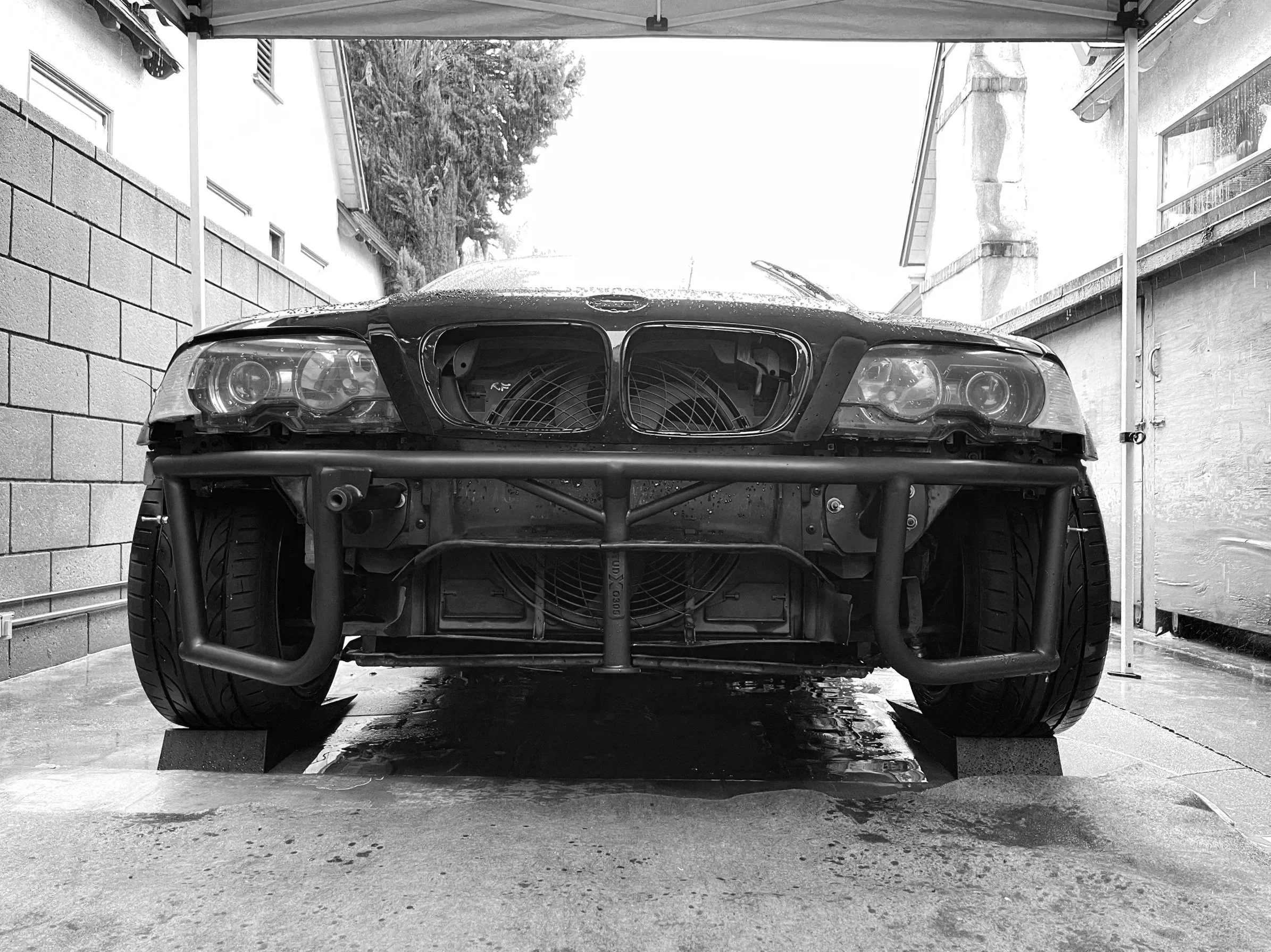

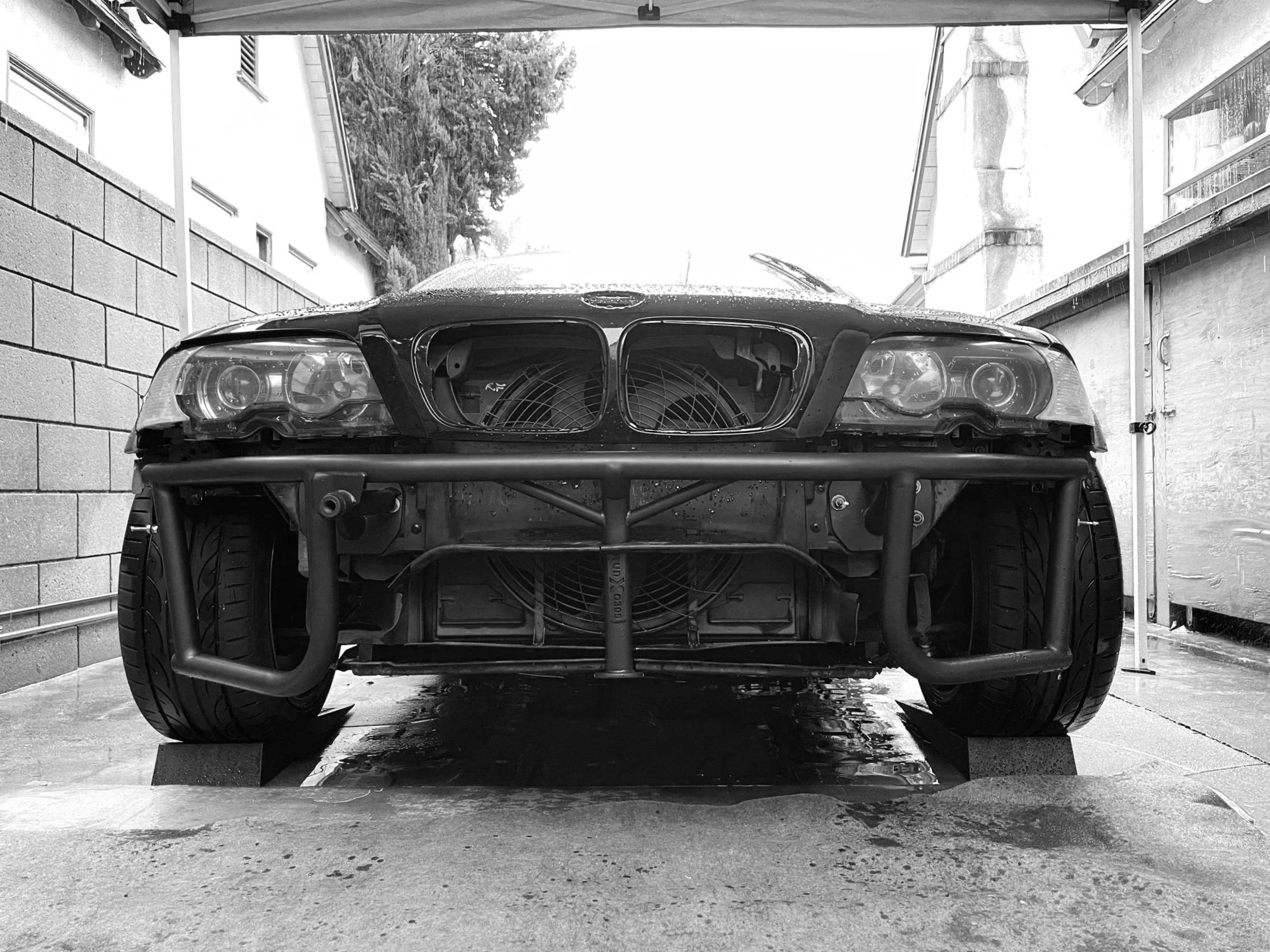

I built out the front bash bar with integrated jack point. There will be mounting provisions to hold the front bumper - mounted with quik-latches, as well as a tow point that serves as a license plate mount when not in use.

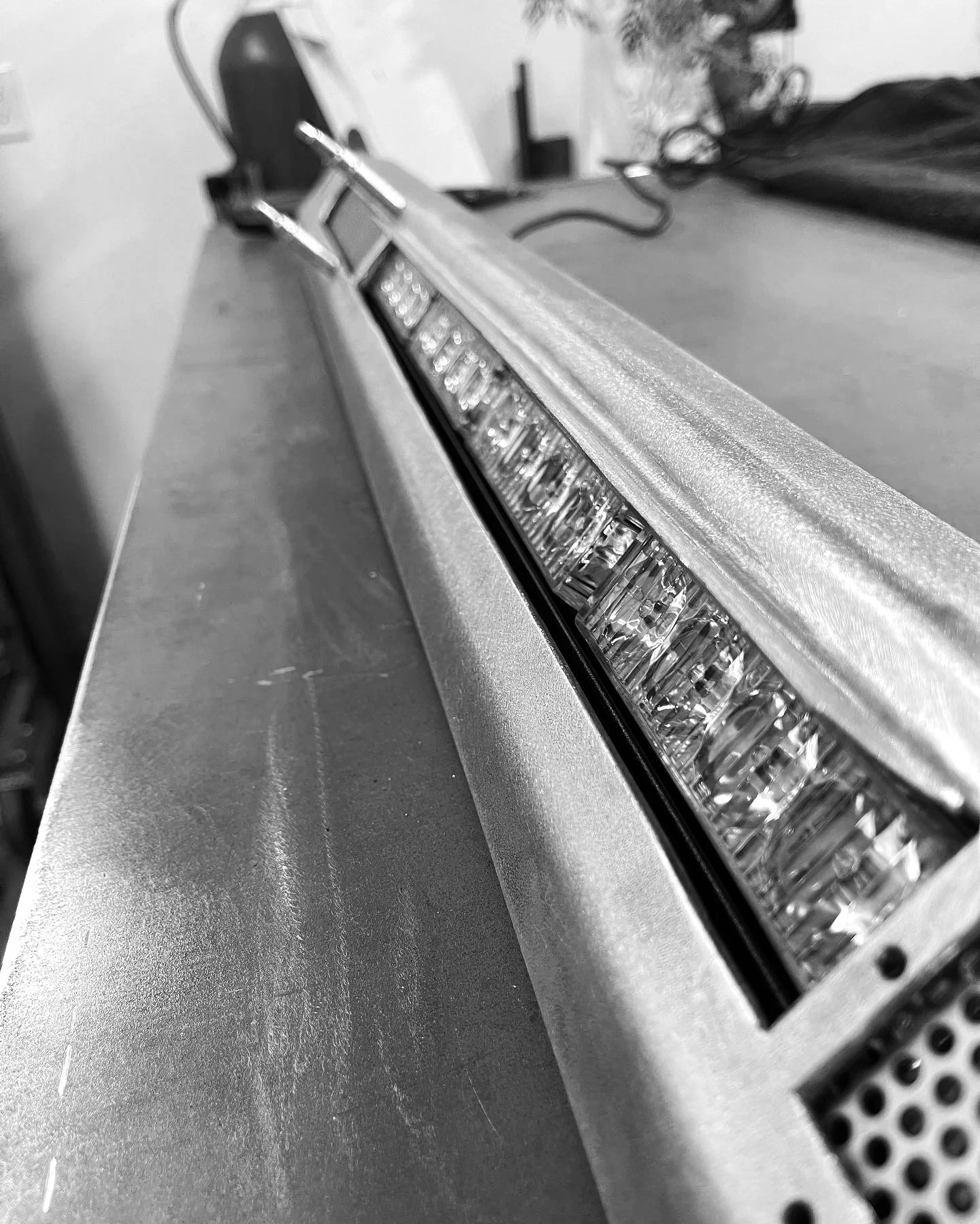

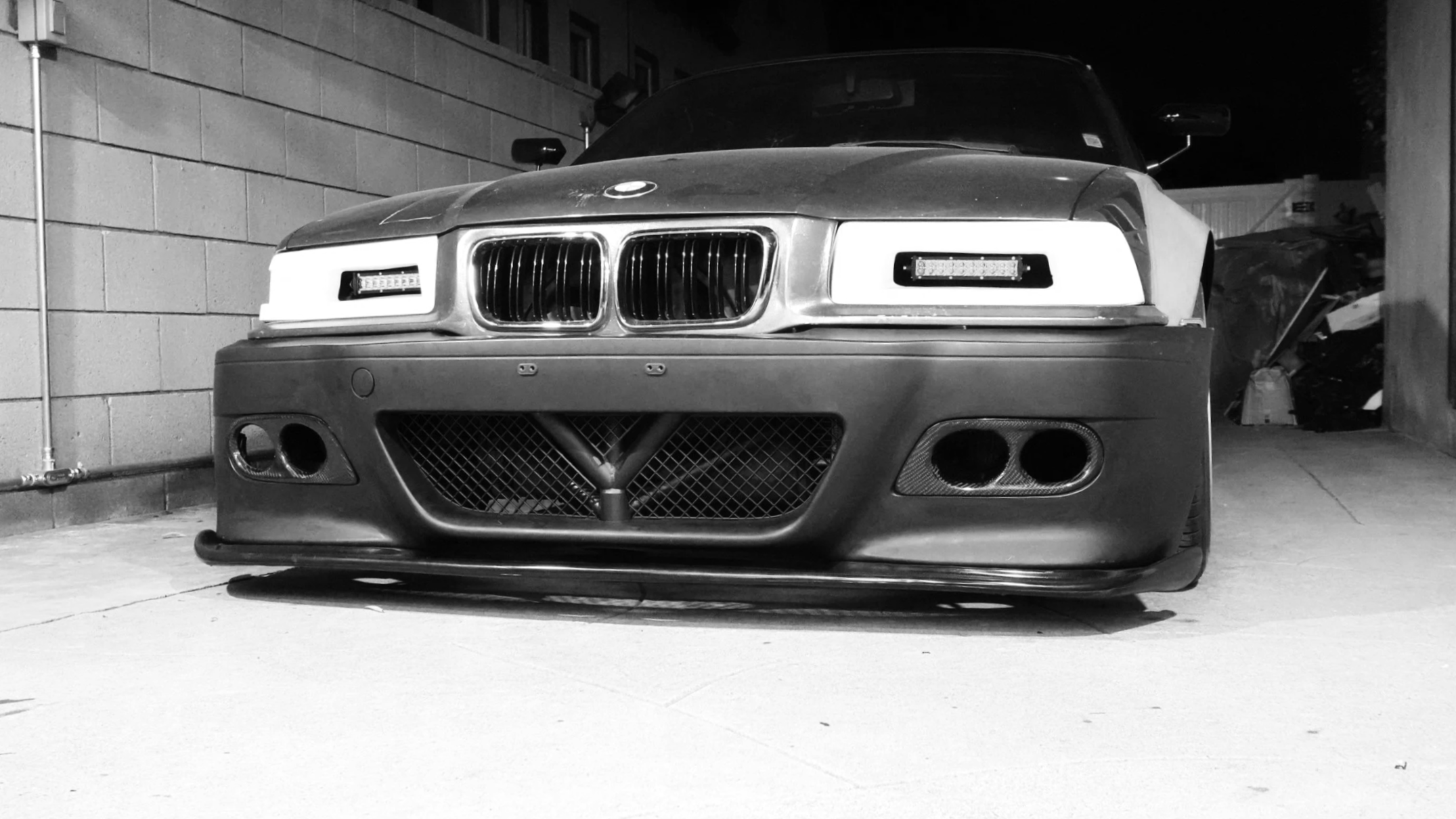

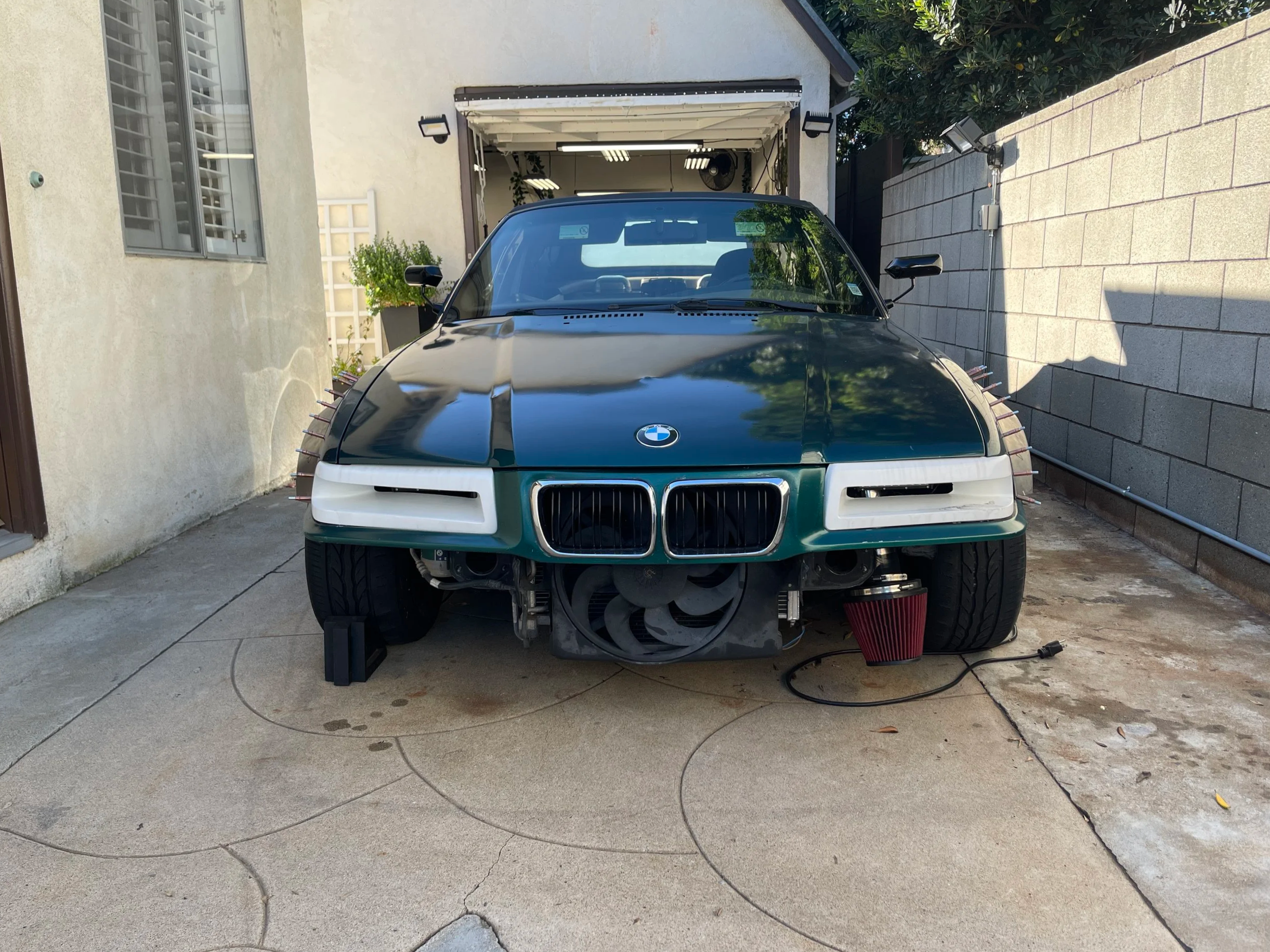

Mounted underneath the OEM core support are brackets I designed and built to hang LED light bars that were supplied. They sit just behind the headlight bezel and ‘float’, centered within the opening.

The front bash bar is bolted up here with the front bumper marked and cut, it mounts with ease centered up front.

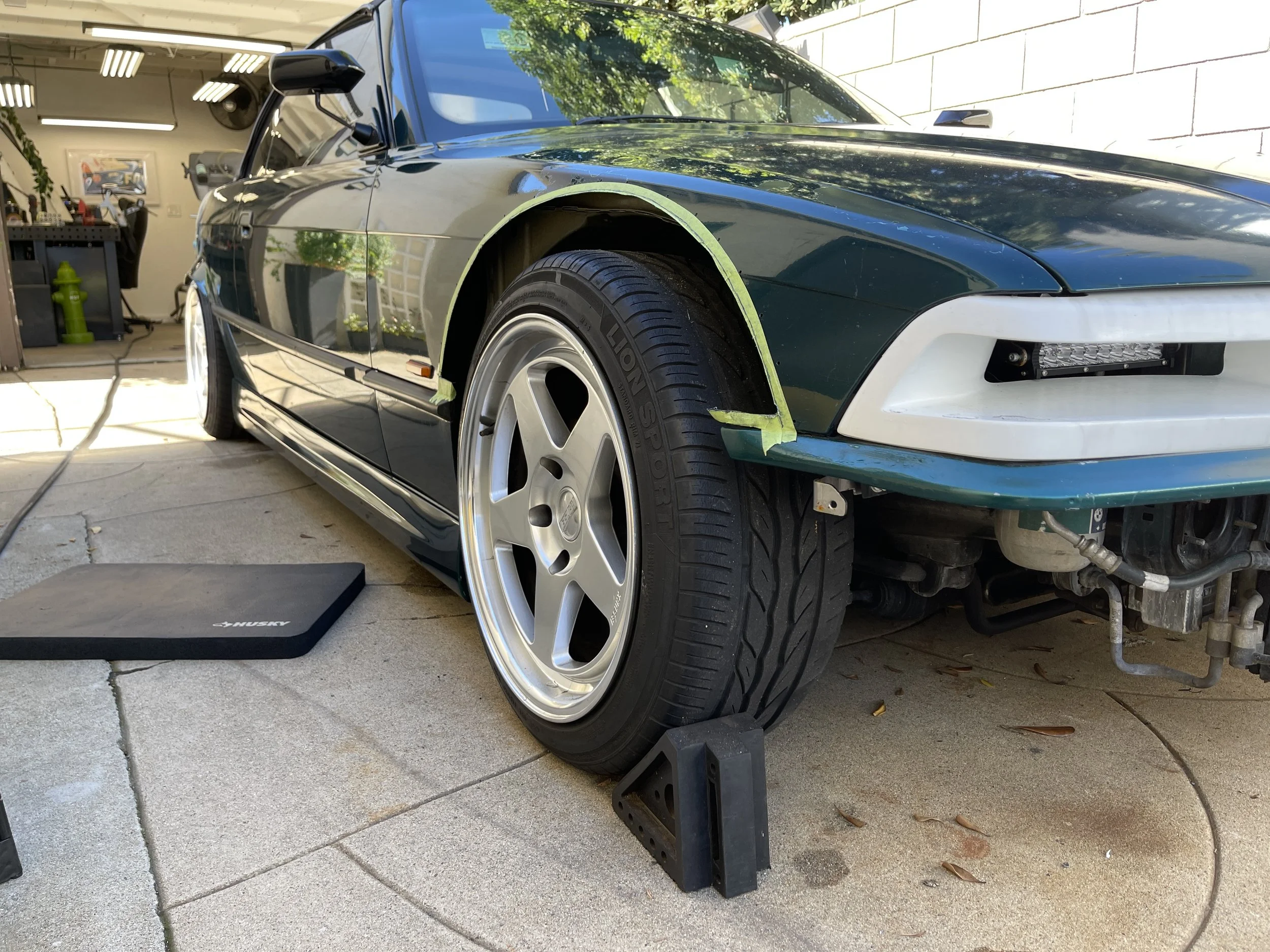

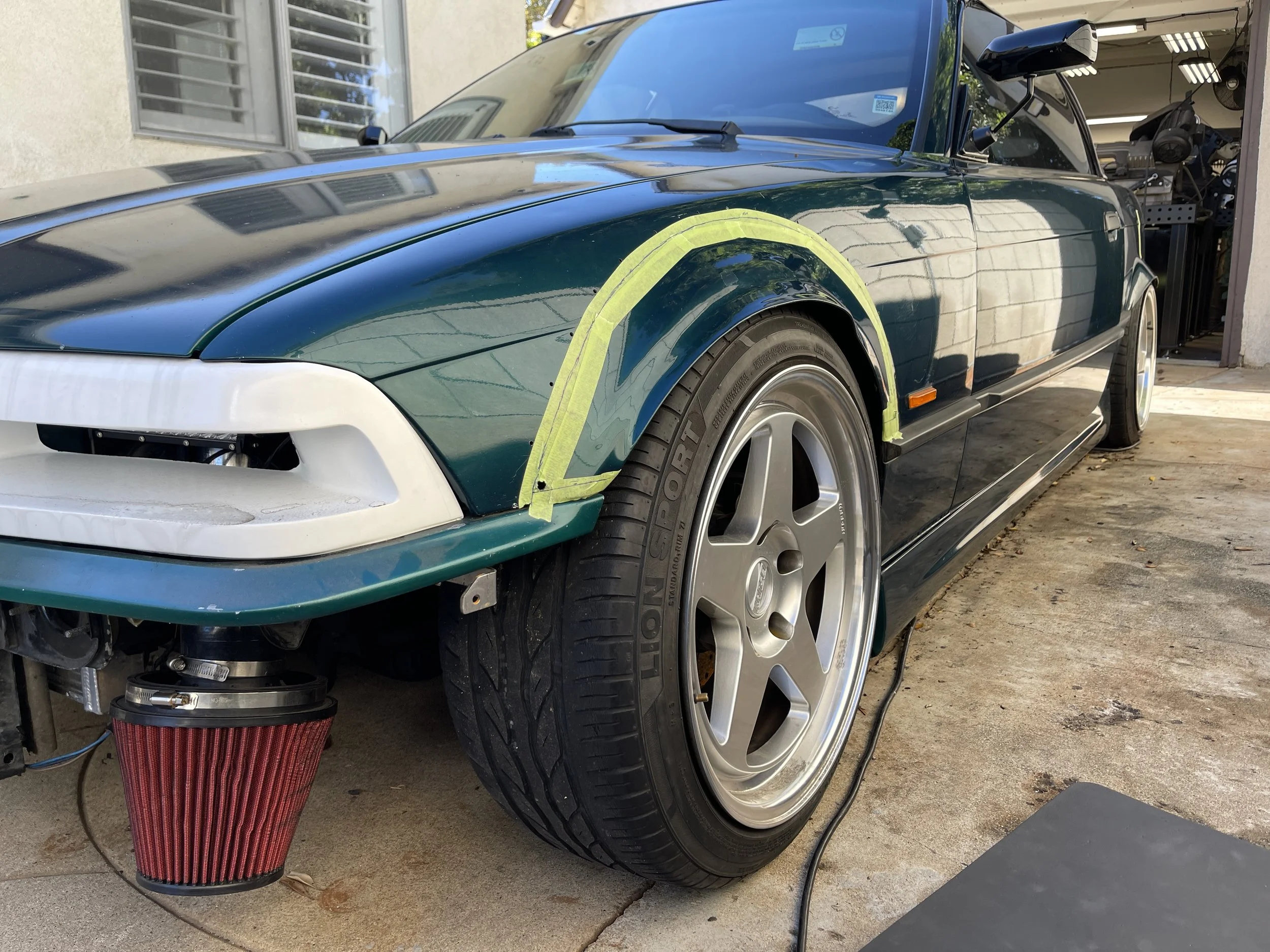

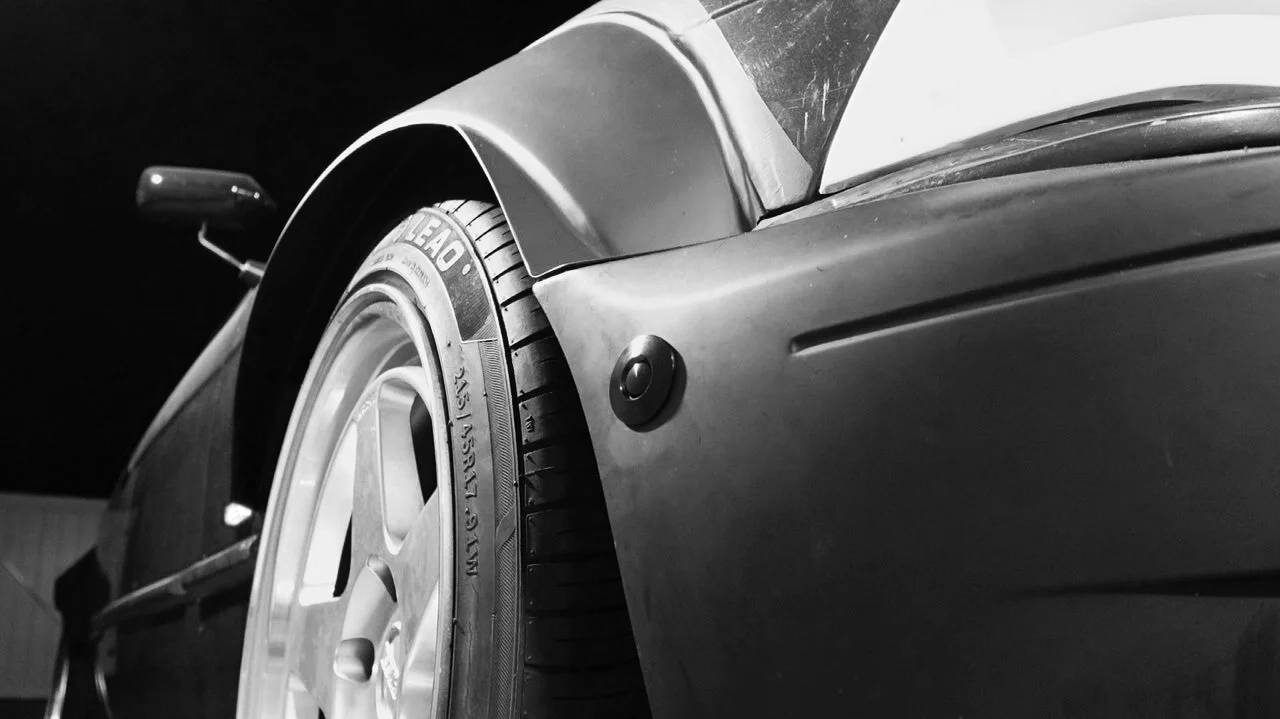

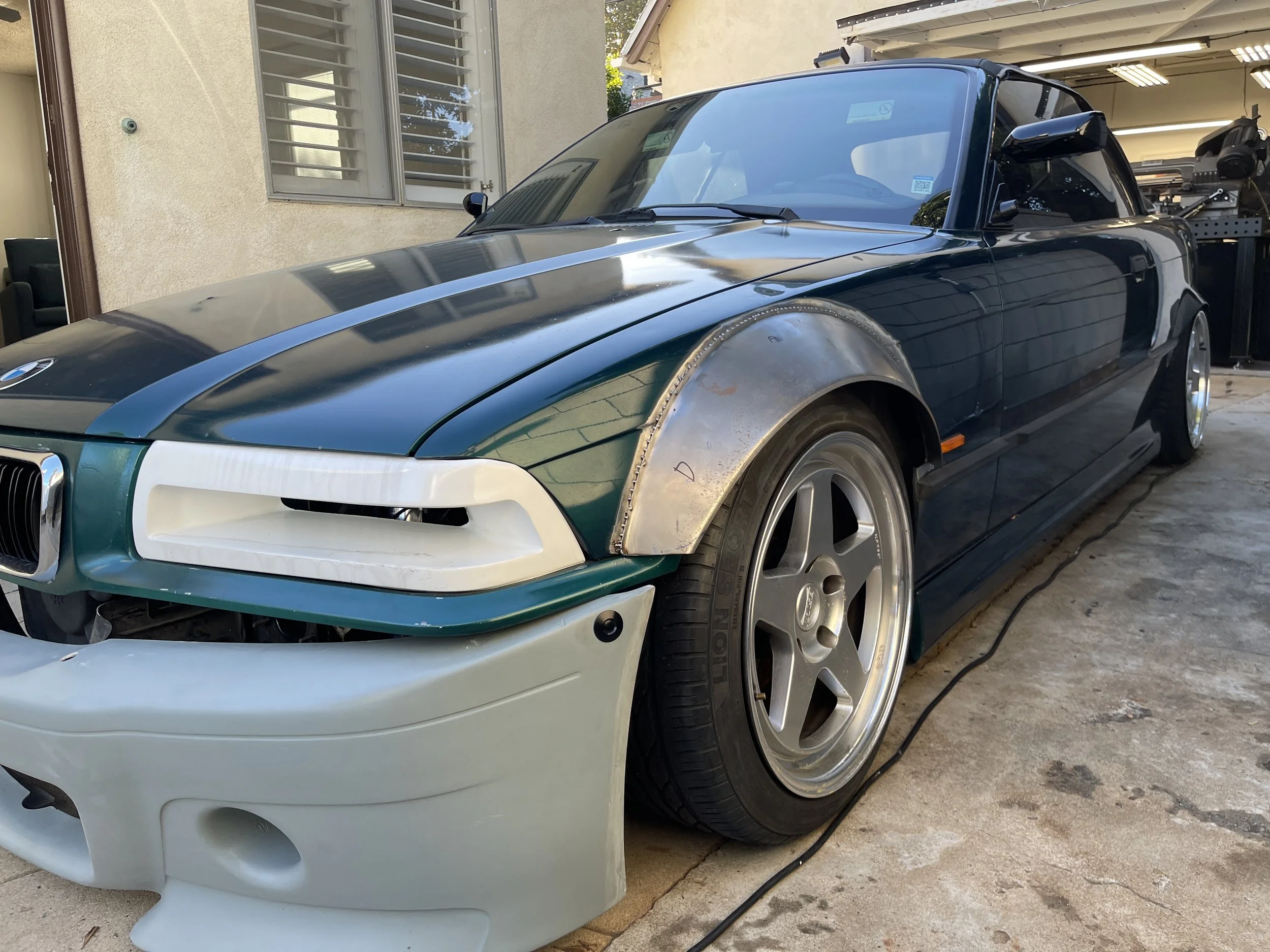

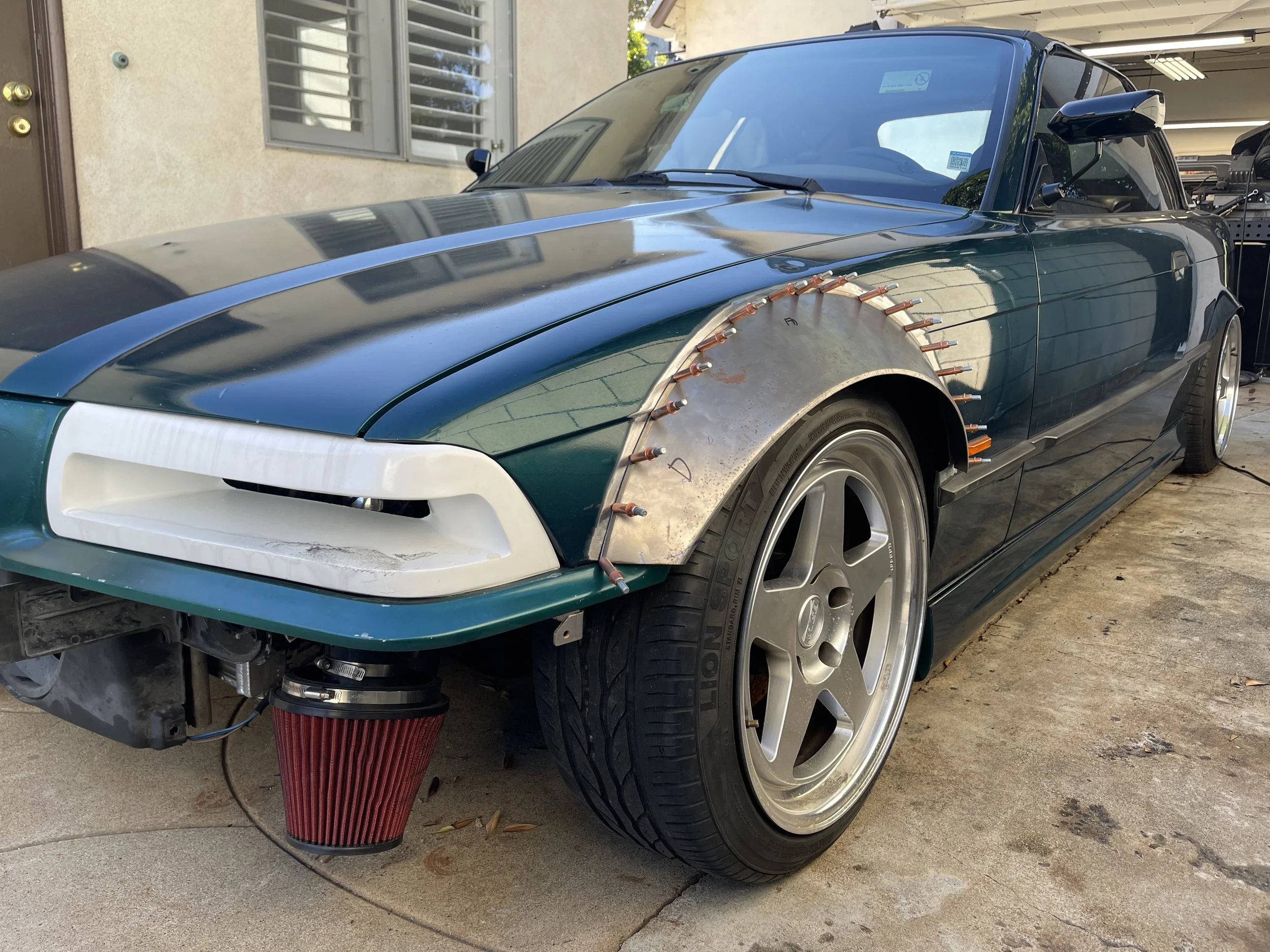

Now beings the process of fitting the new fenders around each corner. I started off by first leveling out the car, squaring everything up and mounting each fender with clecos. Trimming away at the fat, I ended up with an opened up wheel arch that would soon be covered by the new fenders.

With the fenders cleco’d on, I could methodically remove each one, replacing them with a small tack weld. Hammering and dolling, cooling with air and a wet rag along the way. The idea was to keep warping down to a minimum(which worked), and reduce additional body work later on.

Stitched welded throughout, it was time to mock up the front bumper again. Things checked out and I could continue welding out the fenders.

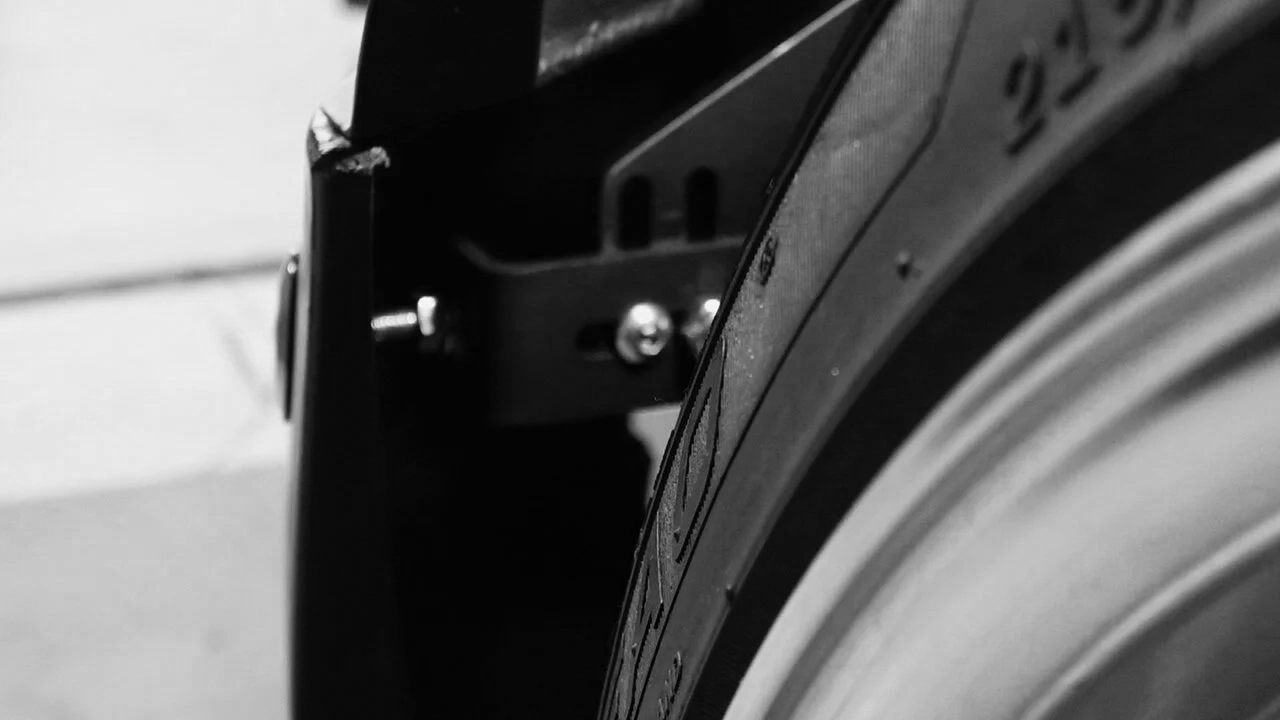

On the inside(underside) of each fender, I created an arched panel that runs along the fender and original body(cut) lines. Those were welded out as well and back filled with seam sealer to create a smooth, sturdy transition that would mitigate tire build up and road debris from collecting in any open voids.

Last up on the list was to start building out a rear diffuser.

The demand? Big, BOLD, and in your face…of course, within reason.

Granted, this won’t be as big as the typical time-attackish diffusers often seen throughout Japan, it will still have a more rearward design with exposed fins.

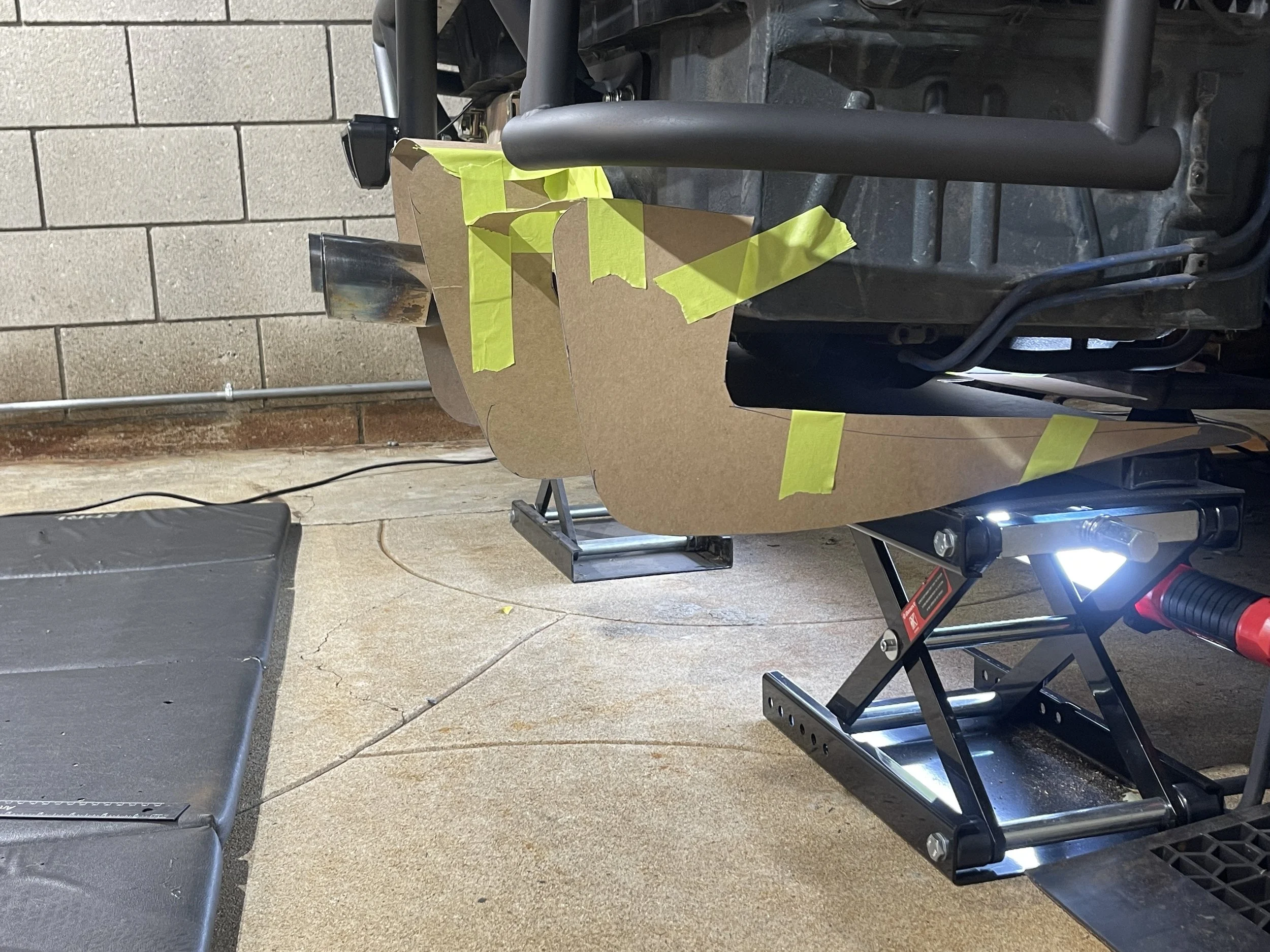

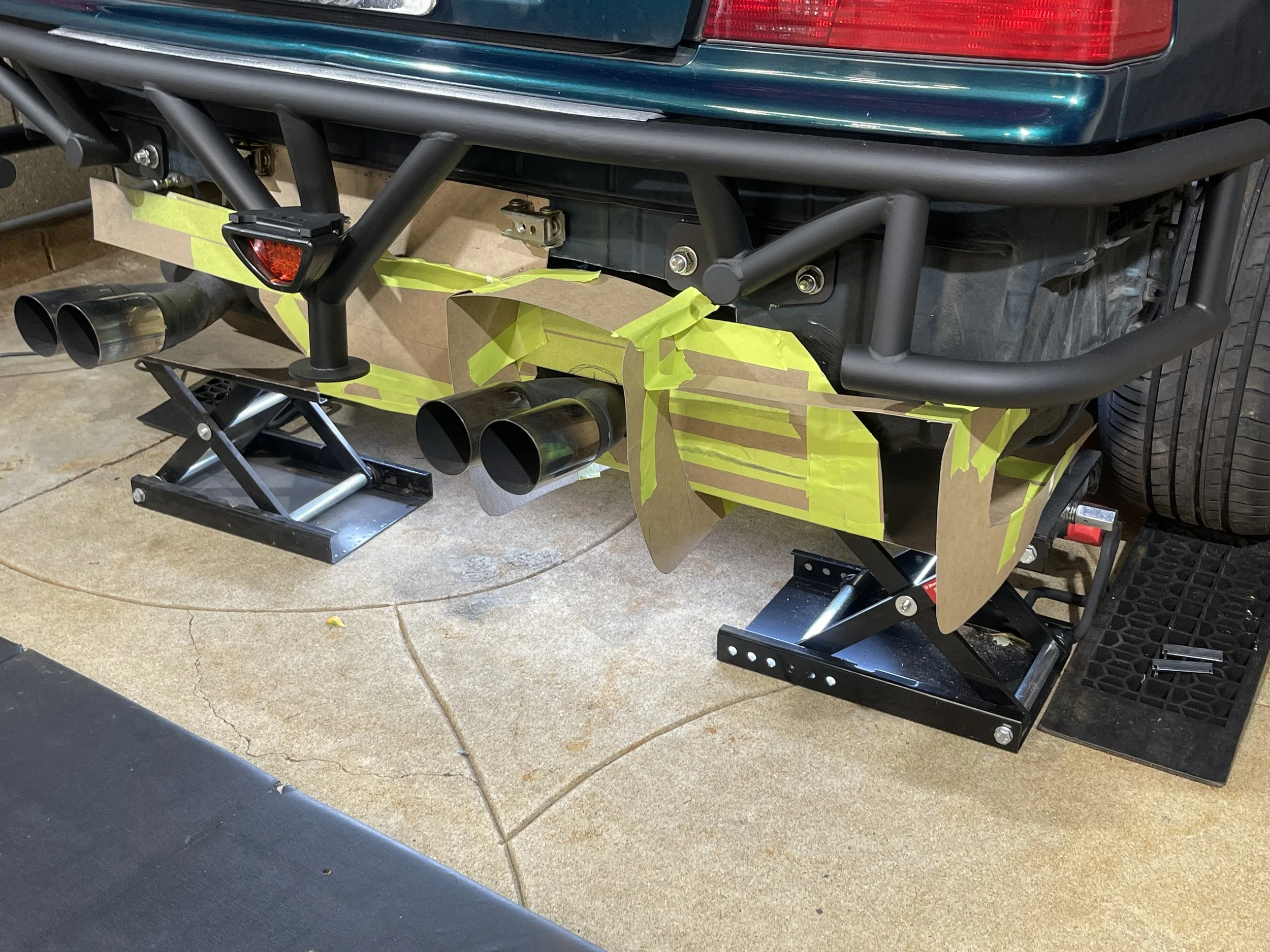

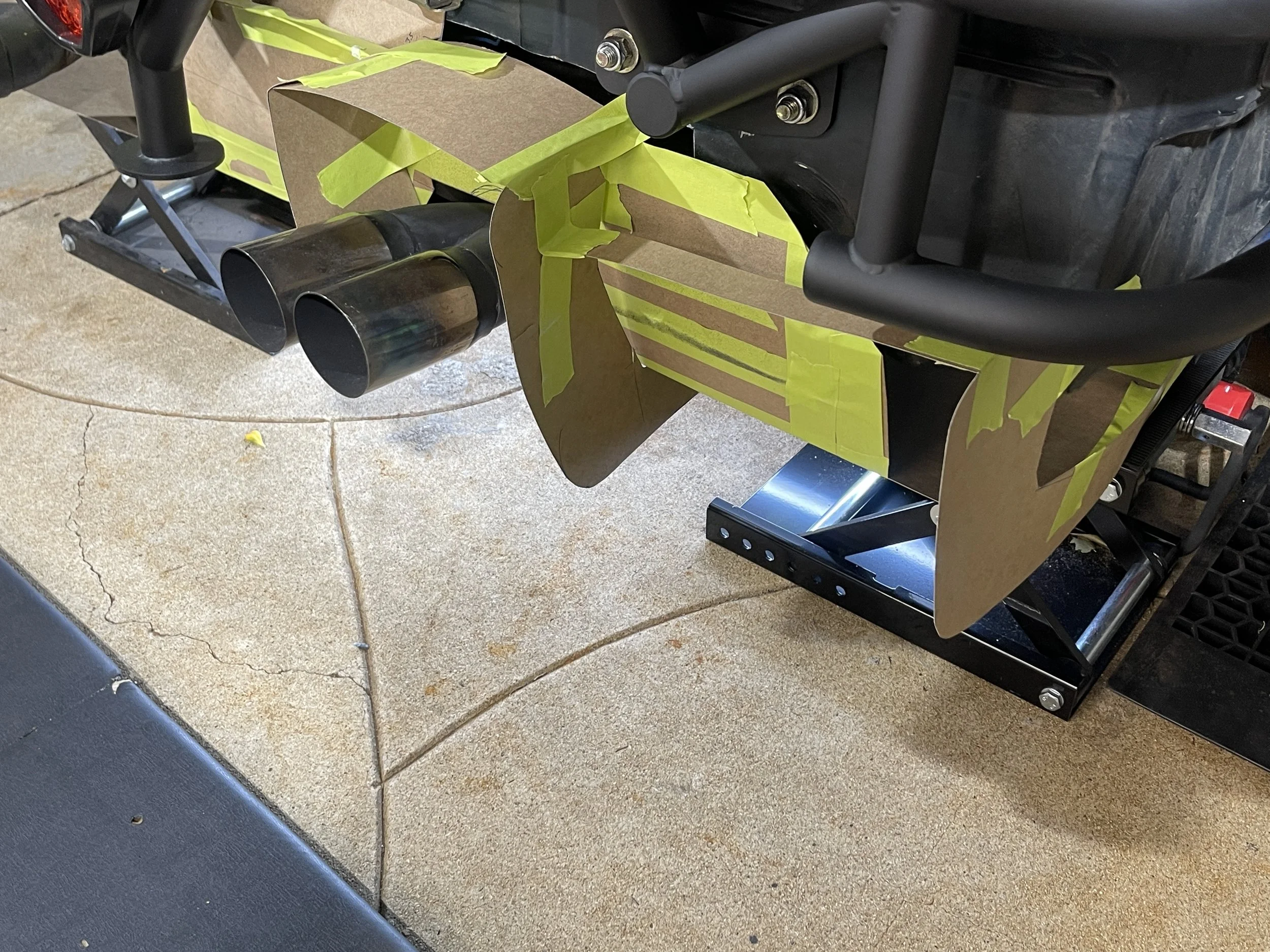

I started off by first building out templates of everything, exact but not EXACT. With the lower ‘tray’ built out under the car, I could move more rear ward and start mocking up the rear vertical plane, and begin as well with the fins and their placement. The plan is to have 2 fins on the outermost edges, and 4 vertical fins (connected at the top) as pairs housing the exhaust tips.
